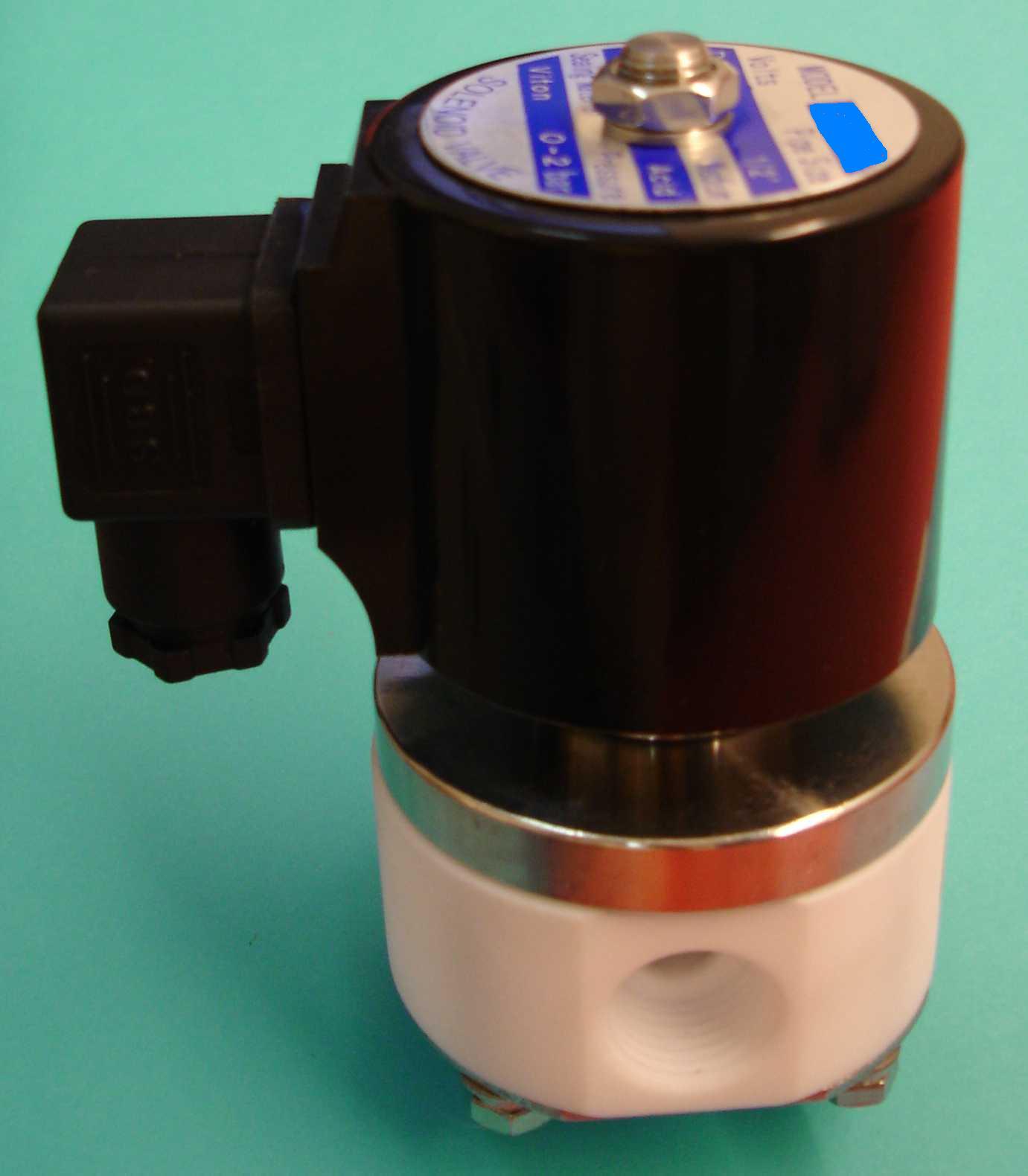

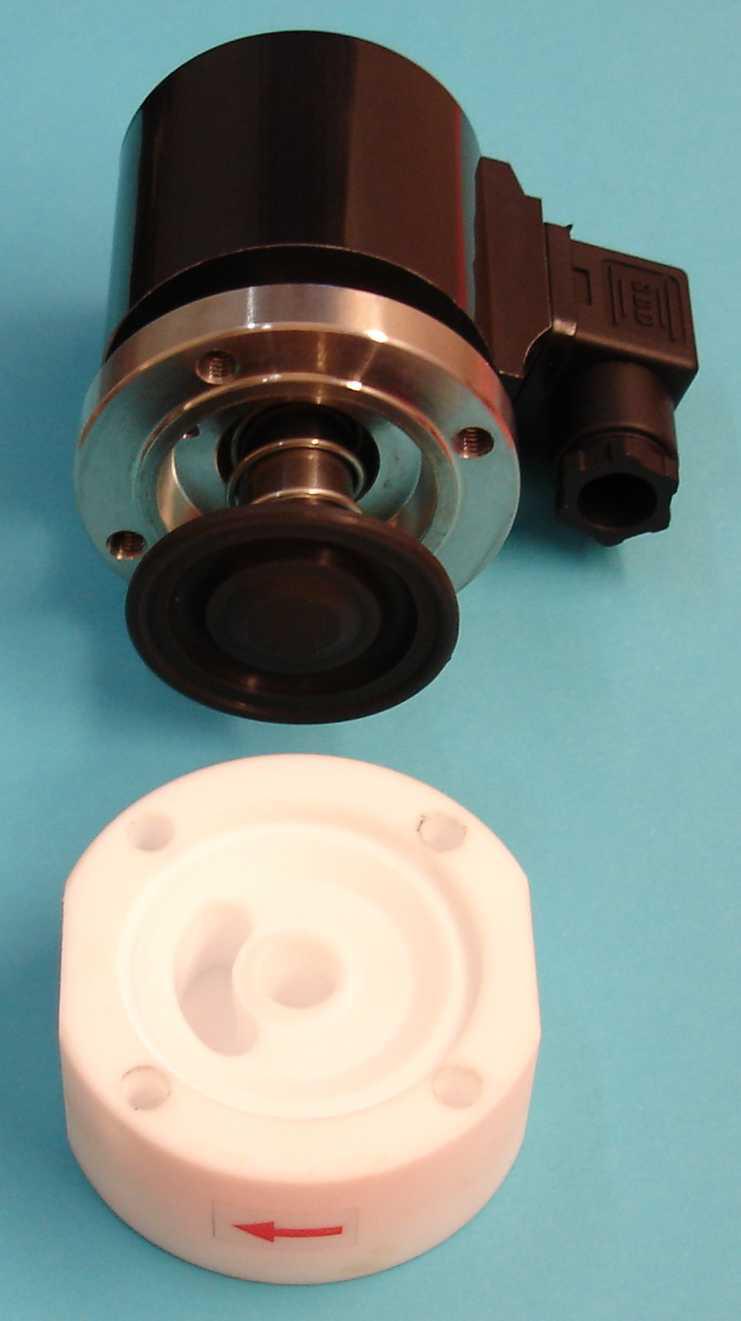

2 Ways Solenoid Valve (PTFE Body with Viton Diaphram)

 (no metallic parts in contact with fluid)

Orifice min: 5 mm
H= 94mm L=80mm
Body Diam.=45mm
2 fix. holes 4MA
*Coil Voltage 24 Vdc * Prot IP65



VE22TF04G24V3
In-Out Ends: 1/4 GAS or NPT
*Press IN: 0-2Bar *Press OUT: 0,8 Bar Max
*Temp.: -5 > +80 C°
*Materials:
Body: Teflon PTFE
Seal: Viton Diaphragm
Flange: Stainless Steel (not in contact with fluid)

Other ends available:
1/8 NPT
3/8 NPT
1/2 NPT
3/4 NPT
1" NPT

Pressure drop > Flow rate (Lt/min)

Inlet Press.(Bar)

0,50

1,00

1,50

2,00

Flow rate (L/min)

4,00

5,60

7,00

7,60



2 Ways Solenoid Valve (PTFE Body with Viton Diaphram) IN/OUT 1/2 NPT



*Press IN: 0-2Bar *Press OUT:0,5 Bar Max
*Temp: -5 > +80 C°
*Materials:
Body: Teflon PTFE
Sial: Viton
Flange: Stainless steel
(No contact with fluids)
Min orifice : 11 mm
H= 110 mm L=100 mm
Body diameter=70 mm
Weight: 1200 Gr

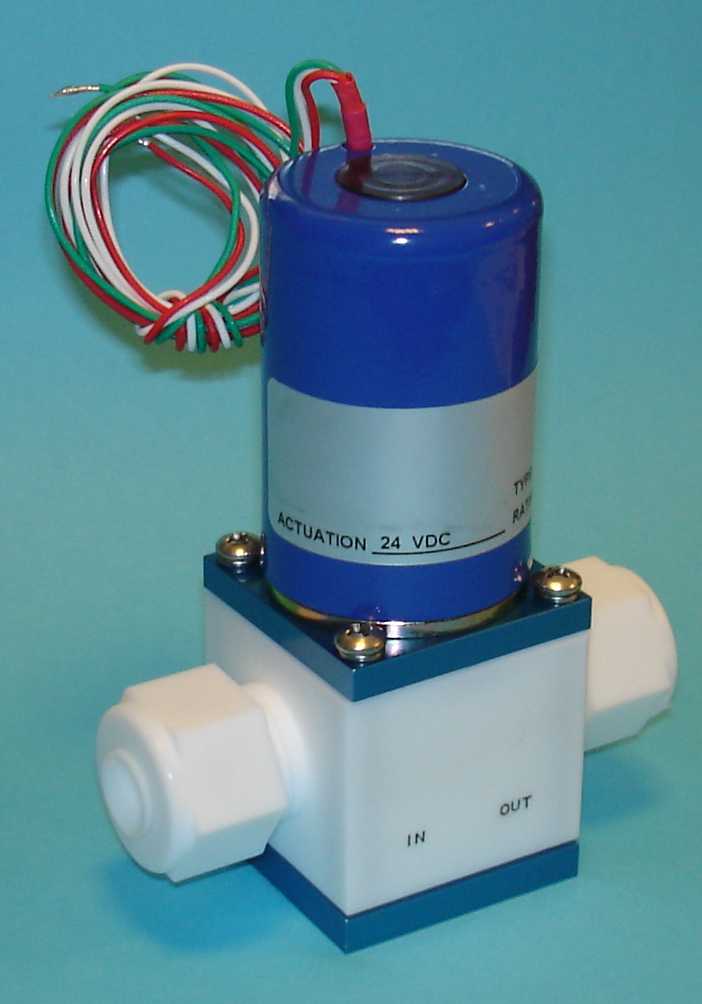

PTFE Solenoid valve 12mm OD Ends

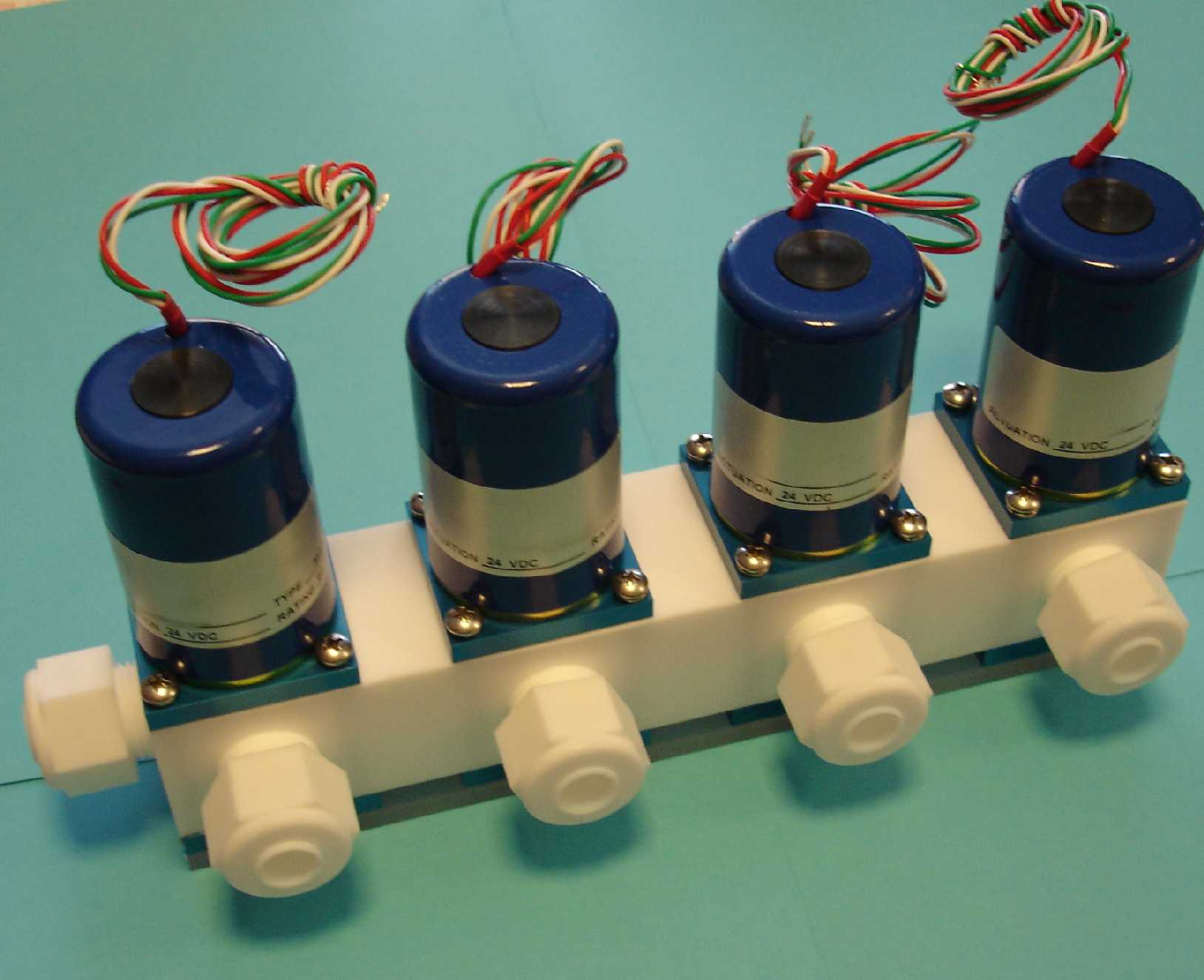

Manifold 4 PTFE Solenoid Valves
